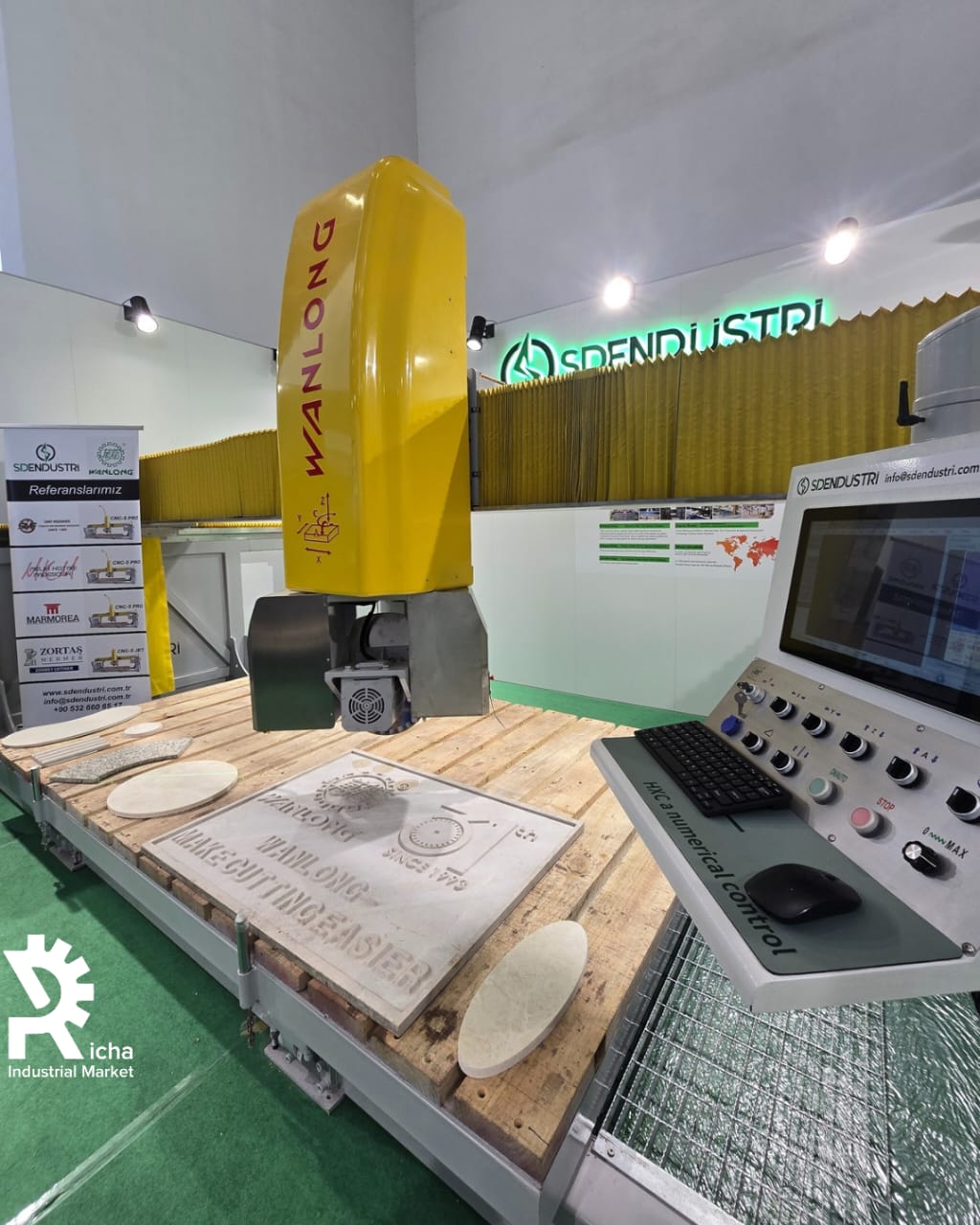

CNC-5A/500 – 5 Axis CNC Bridge Saw

Technical Specs:

Linear Axis Journey (X-Y-Z): 3400 × 2460 × 350 mm
C Axis Journey: ±361°
A Axis Journey: -1° to 91°
Blade Diameter: 300–500 mm
Main Motor Power: 18.5 kW
Main Motor Rated Rotation: 3000 rpm
Max Motor Speed: 6000 rpm
Rated Linear Speed (X-Y-Z): 30-30-6 m/min
Torque: 58.9 Nm
C Axis Rotation Speed: 17.3 rpm
A Axis Rotation Speed: 20.66 rpm
Vacuum Sucker Quantity: 4
Max Vacuum Capacity: 360 kg
Table Size: 3200 × 2000 mm
Total Power: 31.2 kW
Overall Size: 5675 × 3380 × 3050 mm
Machine Weight: 4000 kg
Water Consumption: 15–25 L/min
Air Consumption: 176 L/min
