Model: ZLBS-600CNC/5A

Worktable Size: L3500 × W2000 mm
Maximum Processing Size: L3500 × W2000 × H800 mm
Blade Diameter: Ø350–600 mm

Control Center: Industrial Computer with CNC
Driving Motor: Servo Motor

Main Motor Power: 22 kW (Permanent Magnet Motor with Frequency)
Total Power: 33 kW

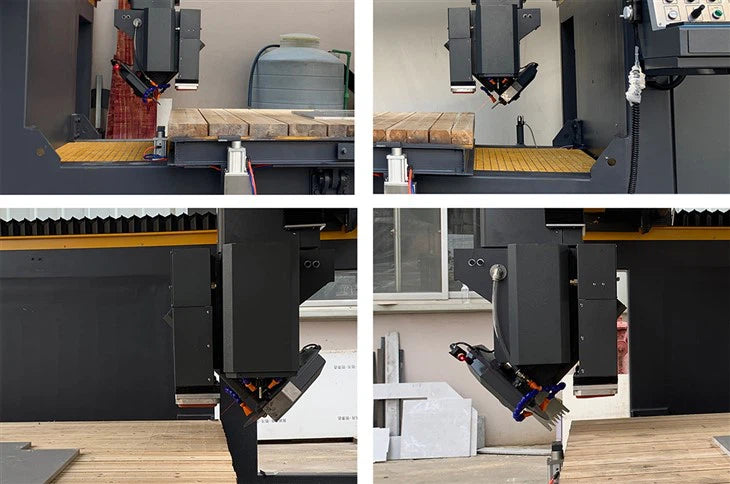

Head Rotation: 0°–360°
Head Tilt: 0°–90°
Worktable Flip: No

Water Consumption: 2 m³/h
Total Weight: 6 tons

Machine Dimensions: L5750 × W3260 × H4100 mm
Delivered Dimensions: L5750 × W2200 × H2680 mm

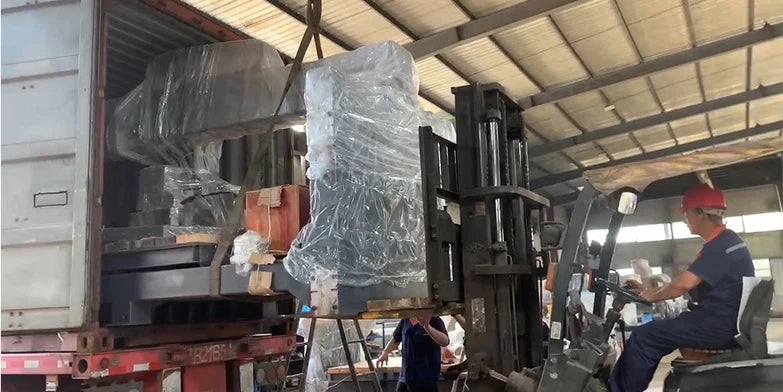

Delivery Method: The main part delivered as a whole in a high-cube container
